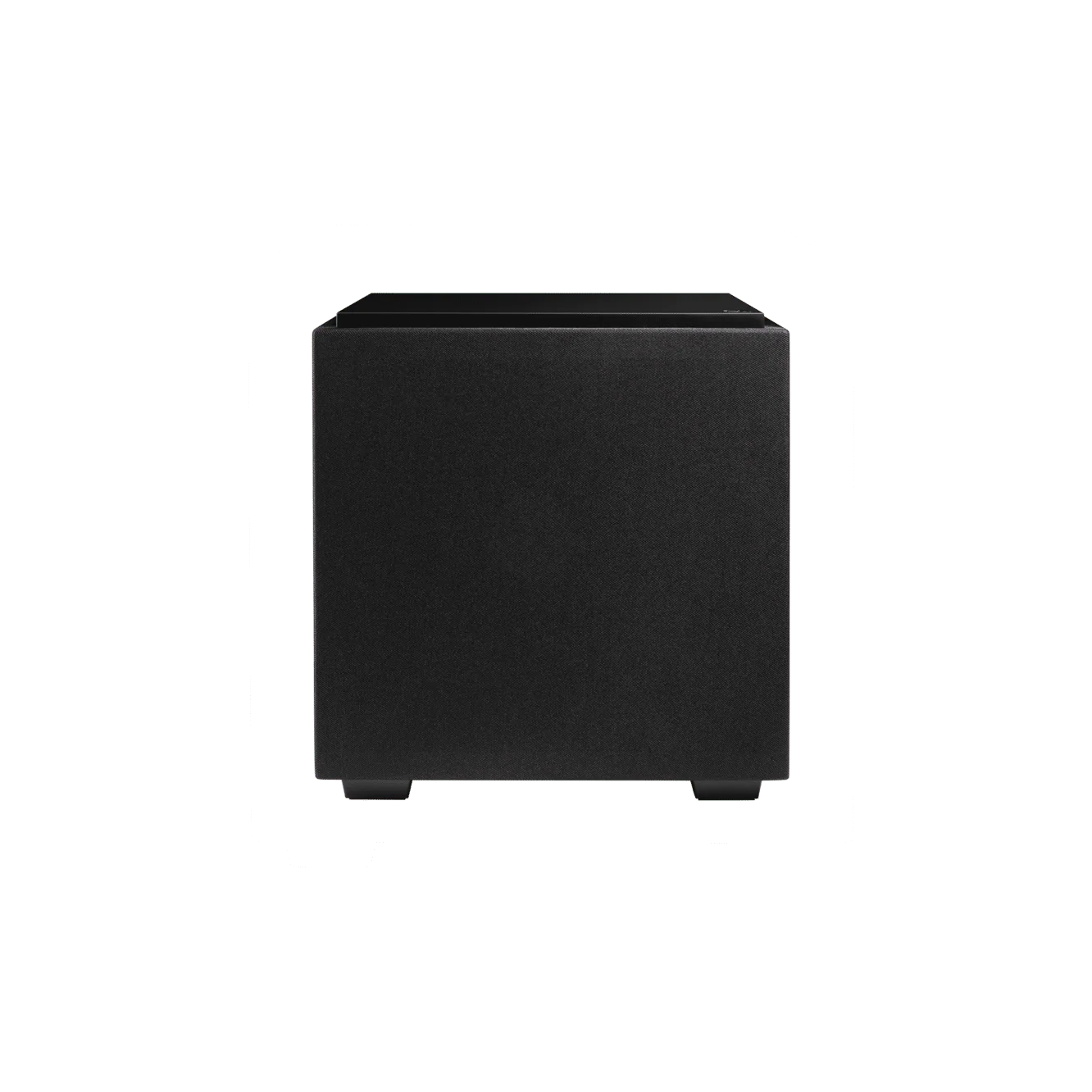

Definitive Technology - DN12 - Subwoofer

The Definitive Technology - DN12 - Subwoofer is an embodiment of reference-level performance and chic design. This Midnight Black marvel isn’t just a subwoofer. It’s a beast tamed, boasting of the groundbreaking 3XR™ Architecture and Intelligent Phase Control™ technology, designed to deliver an unprecedented bass into any audio setup.

The DN12s crowning glory comes in the form of a 12" Long-Throw Woofer complemented by Dual 12" passive radiators for optimally balanced bass. Eliminating the need for manual leveling, it has been fitted with permanently installed rubber padded feet. The dimensions? A compact 18.72" x 18.04" x 19.09", fitting flawlessly into your space like it was made for it.

Imagine the power; with a Class H amplifier, it peels away the conventional boundaries of sound with a continuous power output of 500W and a peak capacity of a staggering 1500W. With a stunningly wide frequency response that ranges from 25 Hz to 150 Hz at only ±3dB deviation, the DN12 significantly raises the bar in the realm of audio experience. Low-Pass crossover frequencies between 40 Hz and 120 Hz, a variable phase adjustment ranging from -135 to 180 degrees (in 45-degree increments) and the option of switching between 120V and 240V power supply, forms the epitome of unparalleled adaptability and control that defines the DN12.

Inputs for LFE Single RCA and 5-Way Speaker Left/Right Binding Posts are expertly crafted into the elegant aesthetics. Finally, it comes with user-friendly controls including; Main Power On/Off, Volume Control +/-/ Mute Buttons, Low Pass Control +/- Buttons, and Phase Control Toggle Button for an absolutely bespoke user experience. Plus, enjoy the style factor of an integrated RGB LED. Venture into a new realm of incredible sound, The DN12- where technology meets definitive performance.

Features:

1. Groundbreaking 3XR™ Architecture: The DN12 is equipped with this revolutionary technology, setting the stage for superior bass reproduction.
2. Intelligent Phase Control™ Technology: This advanced feature ensures optimal sound quality at all times, taking your audio experience to the next level.
3. Compact & Stylish Design: Measuring only 18.72" x 18.04" x 19.09", and featuring an elegant, Midnight Black exterior, the DN12 will seamlessly blend into any home or office setup.
4. Long-Throw 12" Woofer & Dual 12" Passive Radiators: These elements work in synergy to deliver exceptionally balanced and rich bass.
5. Class H Amplification: With continuous power output of 500W and a peak capacity of 1500W, this amplifier delivers high-quality sound and superb efficiency.
6. Variable Phase and Low-Pass Crossover Controls: Customize your audio experience with adjustable phase between -135 to 180 degrees and a low-pass crossover frequency range of 40 Hz to 120 Hz.
7. Multiple Input Options: The DN12 accepts LFE Single RCA and 5-Way Speaker Left/Right Binding Post inputs, giving you flexibility in your setup.
8. User-friendly Controls: Featuring a power button, Volume Control +/-/ Mute Buttons, Low Pass Control +/- Buttons, and a Phase Control Toggle Button for ease of use.
9. Status RGB LED: An integrated LED light adds a sophisticated edge, signaling the operational status of the subwoofer.

Benefits:

1. Enhanced Bass: The 3XR™ Architecture and Intelligent Phase Control™ technology deliver a deeply enveloping bass, taking your listening experience to a whole new level.
2. Seamless Integration: With its sleek design and compact dimensions, the DN12 subwoofer optimally fits into any indoor settings — be it home or professional studios.
3. Energy Efficient: The Class H amplifier delivers superb sound quality while ensuring that your power consumption is always at its lowest.
4. Unmatched Versatility: From the variable phase to adjustable low-pass crossover frequencies, the DN12 allows you to personalize your audio experience like never before.
5. Easy Operation: With intuitively placed buttons, operating the DN12 becomes a breeze, allowing you to focus more on the mesmerizing sound it produces.
6. Aesthetic Appeal: The integrated RGB LED adds a touch of style to your audio setup, making it a real conversation starter.
7. Raising the Bar: With a wide frequency response from 25 Hz to 150 Hz at only ±3dB deviation, the DN12 pushes the boundaries of what a subwoofer can deliver, setting a new standard in the audio industry.

Specifications:

Specification	Description
Colors	Midnight Black
Transducers	12" Long-Throw Woofer
Passive Radiators	Dual 12"
3XR™Configuration	Bass Type Bass Radiator
Feet	Permanently Installed Feet with Rubber Pad (no leveling)
Dimensions	18.72" x 18.04" x 19.09" (475.5 x 458.2 x 484.8mm)
Amplifier Type	Class H
Peak Power	1500W
Continuous (RMS)	500W
Frequency Response (-/+ 3dB)	25 Hz → 150 Hz
Low-Pass Crossover Freq	40 Hz → 120 Hz
Phase Adjustment	-135 to 180 degrees (In 45 degree increments)
Power Supply	Internal IEC 3 prong Jack120V/240V switch
Europe (<.5W Compliance)	Yes
Inputs	LFE Single RCA Speaker Left/Right 5-WayBinding Posts
Controls	Main Power On/Off, Volume Control +/-/ Mute Buttons, Low Pass Control +/- Buttons, Phase Control Toggle Button
Status RGB LED	Yes

In conclusion, the Definitive Technology - DN12 - Subwoofer is the ultimate audio powerhouse that seamlessly integrates into any sound setup. Its state-of-the-art technology, compact design, and user-focused controls elevate it beyond a mere accessory, making it an essential component of your sound system. With the ability to accommodate a 120V and 240V power supply, LFE Single RCA, and 5-Way Speaker Left/Right Binding Posts, the DN12 is your passport to undiluted, immersive sound. Sold exclusively at The Audio Tailor - voted Australia's #1 Hi-Fi Store - this subwoofer encapsulates our commitment to delivering only the highest quality audio experience.
