Definitive Technology - Dymension DC-80 MAX - In-Ceiling Speaker

Dymension CI™ MAX premium in-ceiling speakers deliver precise sound for high-performance home theatre and whole-home systems, with features like our patented pivoting woofer; discreet, flush-mount design; and robust weather protection.

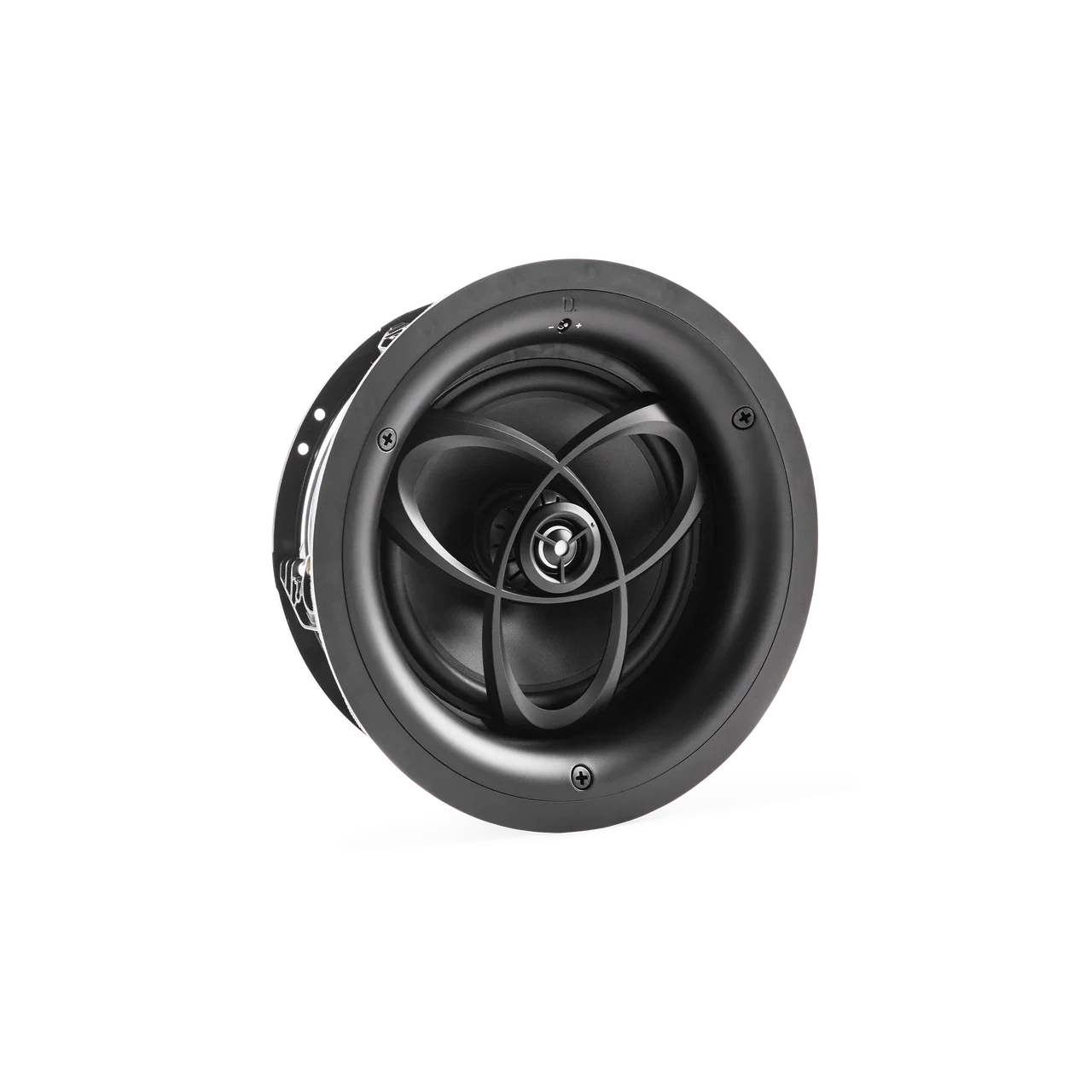

• 8.0" Pivoting BDSS Woofer with Linear Response Waveguide™
• 1" Pivoting Aluminum Oxide Dome Tweeter
• Toolless Installation
• Flush, Border-Free Design
• IP55-Rated



Premium Definitive Sound

Definitive Technology’s most advanced acoustic innovations provide audiophile-grade home-theatre sound.

Customisable Sonic Precision

A patented pivoting woofer and tweeter direct sound precisely where you want it.

Simple, Toolless Installation for fast, easy installs

Install speakers in minutes using an innovative toolless mounting system. A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.

Enjoy Superior Sound Anywhere

Pivoting Aluminium Oxide Dome Tweeter for Superior Imaging Everywhere in the Room

An ultralight, rigid, 1” aluminium oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. CI MAX Series features a pivoting tweeter on most models allowing for speaker placement in convenient locations while directing sound precisely where it matters most.

Premium BDSS Woofers with Linear Response Waveguide for Robust Mids and Lows and the Ultimate Sweet Spot

Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.

Sophisticated Crossover for Optimal Driver Performance

A premium crossover network ensures balanced voicing and smooth response.

Tweeter Attenuation Switch for Easy Adjustments

A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.

Disappearing Design for the Ultimate Vanishing Act

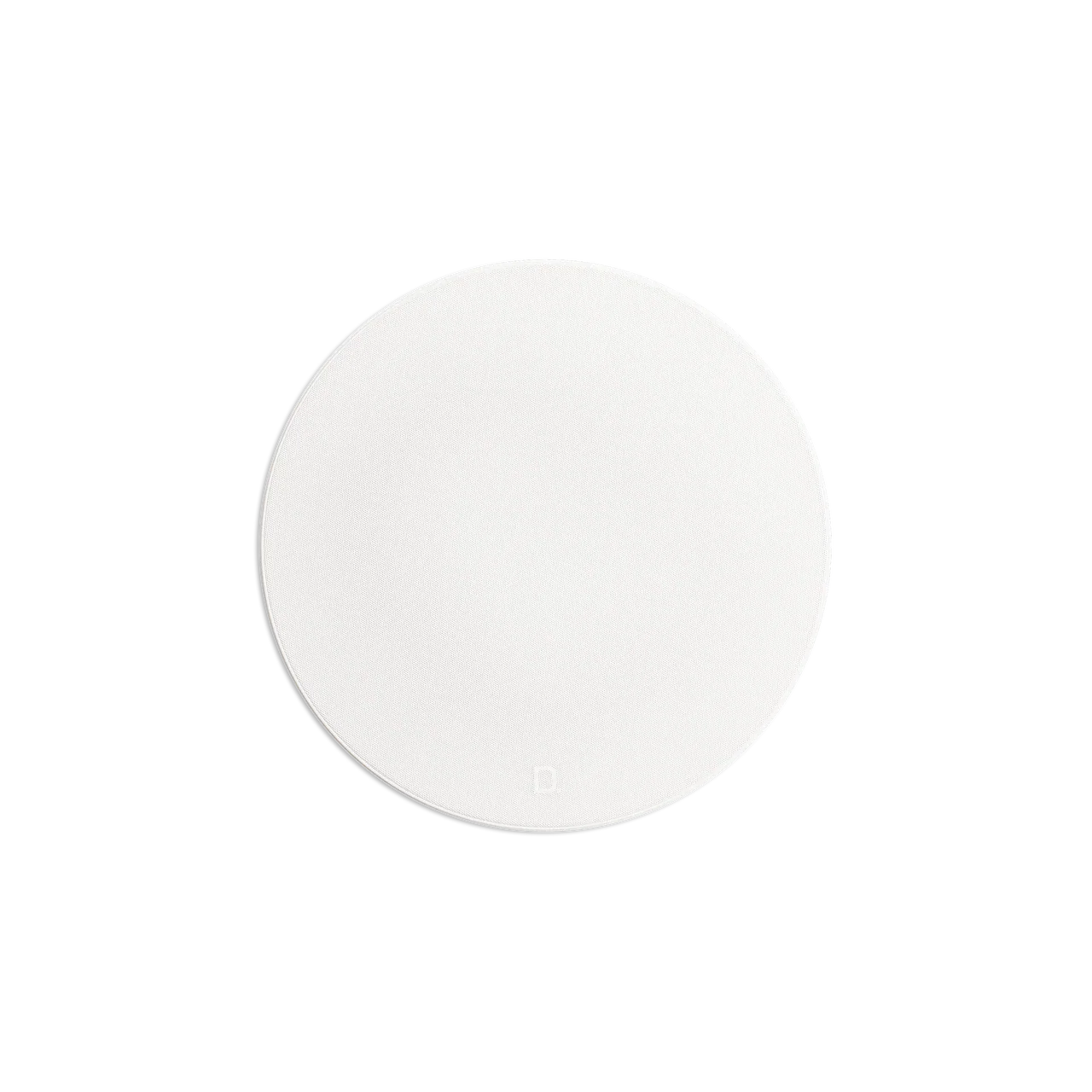

An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

IP55-Rated Construction for robust weather protection

Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.

Timbre-Matching for cohesive sound system

With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theatre system of your dreams.

Specifications

• Product Dimensions (Diameter): 11.80 in (299.8mm)
• Cut- Out Dimensions (Diameter): 10.57 in (268.6 mm)
• Mounting Depth: 5.34 in (135.7 mm)
• Weight: 6.48 lbs (2.94 kg)
• Colour: White Paintable Grille
• Grille material: Micro-Perforated Magnetic Grille
• Tweeter: 1 in Pivoting Aluminum Oxide Dome Tweeter
• Midrange/Midbass: 8 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™
• Frequency response: 26 Hz–30 kHz (-10 dB), 43 Hz–25 kHz (-3 dB)
• Nominal impedance: 6Ω
• Sensitivity: 88dB (2.83V/1m)
• Recommended Amplifier Power: 20-150W
• IP Rating (Ingress Protection): IP55
• Warranty: 5 years
• Included accessories: Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide
