Marantz PM50 Japanese Integrated Amplifier Pre Loved with warranty

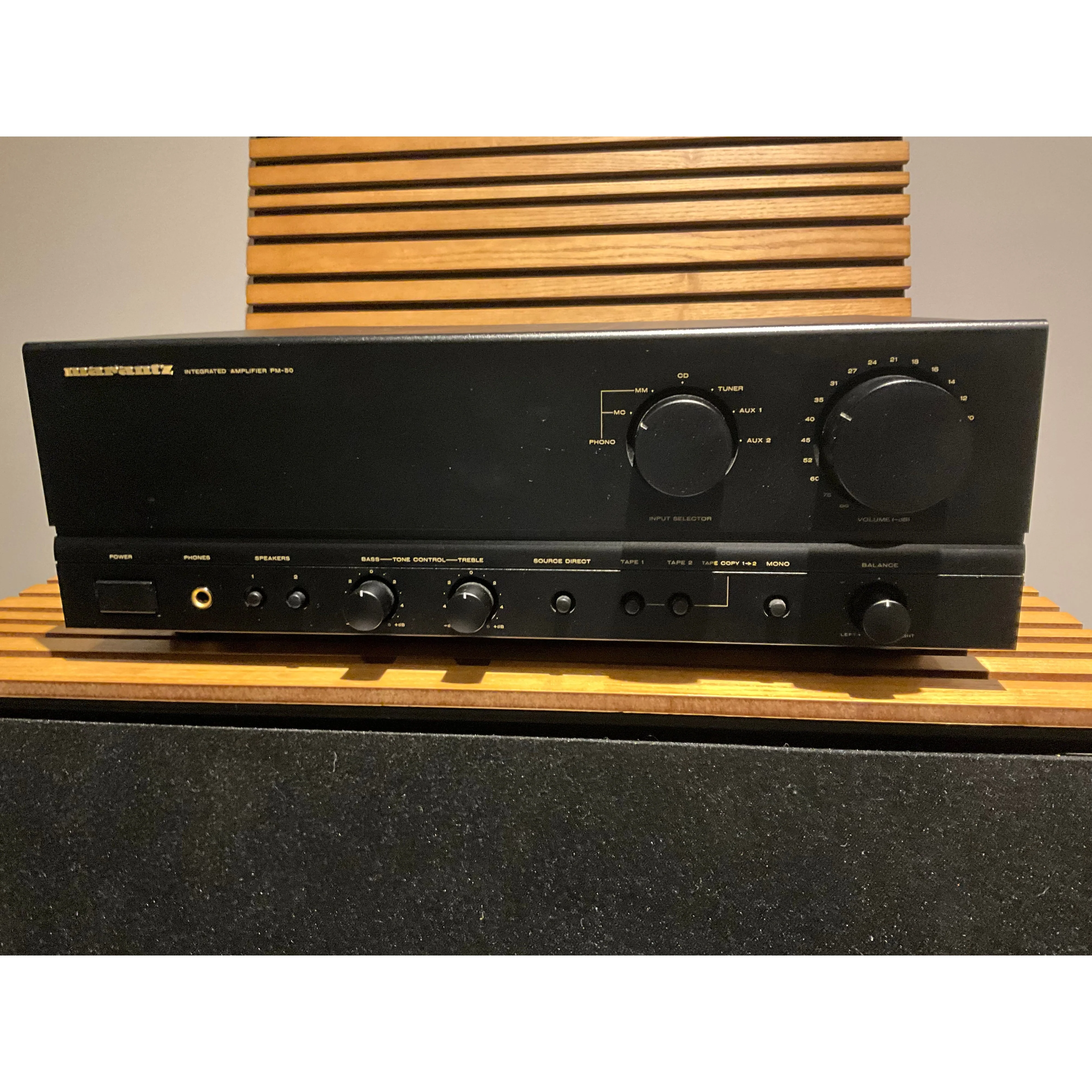

Marantz PM50 Integrated Amplifier Black Pre loved
This unit qualifies for our certification and comes with a 3 month warranty
Dual mc/mm phono stage
Speakers A and B so you can run four speakers with independant switching
If you require packing and shipping then please contact us for a quote before ordering.
Here are some specs and what some reviewers had to say.
This model has been developed with thorough understanding of the basics of pre-main amplifier.
The power supply section is equipped with a 15,000 μ Fx2 large-capacity capacitor to provide a stable current supply.
In addition, consideration is given to the separation of the power supply circuit and the layout around the power supply to prevent contamination of noise.
To make the most of the characteristics of analog records, we have adopted a phono equalizer using a low-noise FET and audio IC. It is compatible not only with MM type cartridges but also with MC type cartridges.
There is a source direct switch which is connected directly to the master volume from the selector switch. This allows you to listen to all sources directly connected to the power amplifier.
The input terminals are Line 5, and the tape input / output terminals are 2 systems.
Apart from the usual source selector, the tape monitor switch allows for easy editing of tapes 1 to 2.
The master volume uses Marantz's unique resistance change characteristics to provide a natural sound volume as the knob rotates.
| Type | Stereo pre-main amplifier |
| Rated output (20 Hz to 20 kHz, both channels driven simultaneously) |
120W + 120W (4 Ω) 100W + 100W (6 Ω) 80W + 80W (8 Ω) |
| Dynamic Power | 240W + 240W (2 Ω) 180W + 180W (4 Ω) 140W + 140W (6 Ω) |
| Total harmonic distortion rate (20 Hz to 10 kHz, 8 Ω load) | 0.008% |
| Intermodulation Distortion Factor (SMPTE) | 0.008% |
| Frequency characteristic | CD Source Direct : 10 Hz ~ 100 kHz + 0 -3dB |
| Damping factor (8 Ω load) | 180 (20 Hz to 10 kHz) |
| Input Sensitivity / Impedance | Phono MC : 250 μ V/100 Ω Phono MM : 2.5mV/47k Ω High Level : 150mV/33k Ω |
| Phono maximum allowable input (1 kHz) | MC:16mV MM:160mV |
| RIAA deviation (20 Hz to 20 kHz) | + / - 0.2 dB |
| Signal-to-noise ratio (A network) | Phono MC:75dB Phono MM:85dB High Level:105dB |
| Tone control | Bass : 100 Hz, ± 6 dB Treble : 10 kHz, ± 6 dB |
| Power | 220/240 VAC, 50/60Hz |
| Power consumption | 180W (Electrical Appliance and Material Control Law) |
| External dimensions | Width 420x Height 150x Depth 380 mm |
| Weight | 10.0kg |
Original: $349.37
-70%$349.37
$104.81
Description
Marantz PM50 Integrated Amplifier Black Pre loved
This unit qualifies for our certification and comes with a 3 month warranty
Dual mc/mm phono stage
Speakers A and B so you can run four speakers with independant switching
If you require packing and shipping then please contact us for a quote before ordering.
Here are some specs and what some reviewers had to say.
This model has been developed with thorough understanding of the basics of pre-main amplifier.
The power supply section is equipped with a 15,000 μ Fx2 large-capacity capacitor to provide a stable current supply.
In addition, consideration is given to the separation of the power supply circuit and the layout around the power supply to prevent contamination of noise.
To make the most of the characteristics of analog records, we have adopted a phono equalizer using a low-noise FET and audio IC. It is compatible not only with MM type cartridges but also with MC type cartridges.
There is a source direct switch which is connected directly to the master volume from the selector switch. This allows you to listen to all sources directly connected to the power amplifier.
The input terminals are Line 5, and the tape input / output terminals are 2 systems.
Apart from the usual source selector, the tape monitor switch allows for easy editing of tapes 1 to 2.
The master volume uses Marantz's unique resistance change characteristics to provide a natural sound volume as the knob rotates.
| Type | Stereo pre-main amplifier |
| Rated output (20 Hz to 20 kHz, both channels driven simultaneously) |
120W + 120W (4 Ω) 100W + 100W (6 Ω) 80W + 80W (8 Ω) |
| Dynamic Power | 240W + 240W (2 Ω) 180W + 180W (4 Ω) 140W + 140W (6 Ω) |
| Total harmonic distortion rate (20 Hz to 10 kHz, 8 Ω load) | 0.008% |
| Intermodulation Distortion Factor (SMPTE) | 0.008% |
| Frequency characteristic | CD Source Direct : 10 Hz ~ 100 kHz + 0 -3dB |
| Damping factor (8 Ω load) | 180 (20 Hz to 10 kHz) |
| Input Sensitivity / Impedance | Phono MC : 250 μ V/100 Ω Phono MM : 2.5mV/47k Ω High Level : 150mV/33k Ω |
| Phono maximum allowable input (1 kHz) | MC:16mV MM:160mV |
| RIAA deviation (20 Hz to 20 kHz) | + / - 0.2 dB |
| Signal-to-noise ratio (A network) | Phono MC:75dB Phono MM:85dB High Level:105dB |
| Tone control | Bass : 100 Hz, ± 6 dB Treble : 10 kHz, ± 6 dB |
| Power | 220/240 VAC, 50/60Hz |
| Power consumption | 180W (Electrical Appliance and Material Control Law) |
| External dimensions | Width 420x Height 150x Depth 380 mm |
| Weight | 10.0kg |
