Monitor Audio - C1L - In-Ceiling Speaker
This large Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 9" (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
p>Optional square grille can be used with this model.Specifications
- System Format: 2–Way
- Channels: 1
- Frequency Response, Installed (-6dB): 30 Hz – 25 kHz​
- Nominal Impedance: 8 ohm
- Minimum Impedance (20Hz to 20kHz): 6.4 Ohm @ 150 Hz
- Sensitivity (2.83Vrms@1m, Installed): 88 dB
- Maximum Peak SPL* (single speaker @ 1m Z-Weighted): 116 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 75 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 40 – 150 W
- Drive Unit Complement: 1 x 9" (229 mm) C-CAM mid-bass driver , 1 x 1.25" (32 mm) C-CAM tweeter
- Crossover Frequency: LF/HF: 2 kHz
- Mounting Depth: 99 mm (37/8")
- Cut-Out Hole Diameter: 248 mm (93/4")
- External Dimensions (Including Grille (H x W x D)) :278 x 278 x 103​ mm (1015/16 x 1015/16 x 44/16)"
- Weight (each): 2.5 kg (5 lb 8 oz)
- Pre-Construction Bracket: CL-B

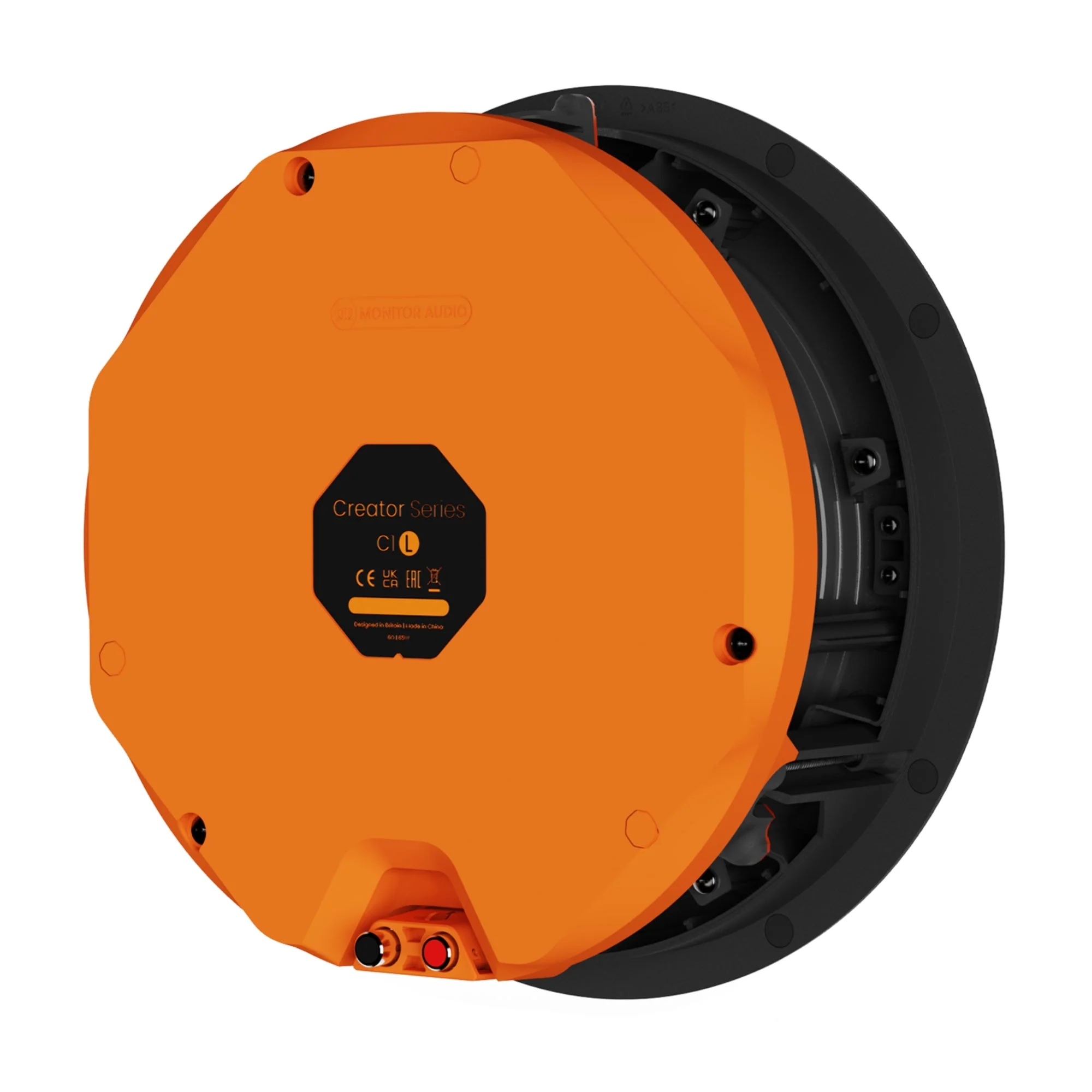

- Cabinet Finish: Matt black & Orange​
- Sold As: Single Unit
