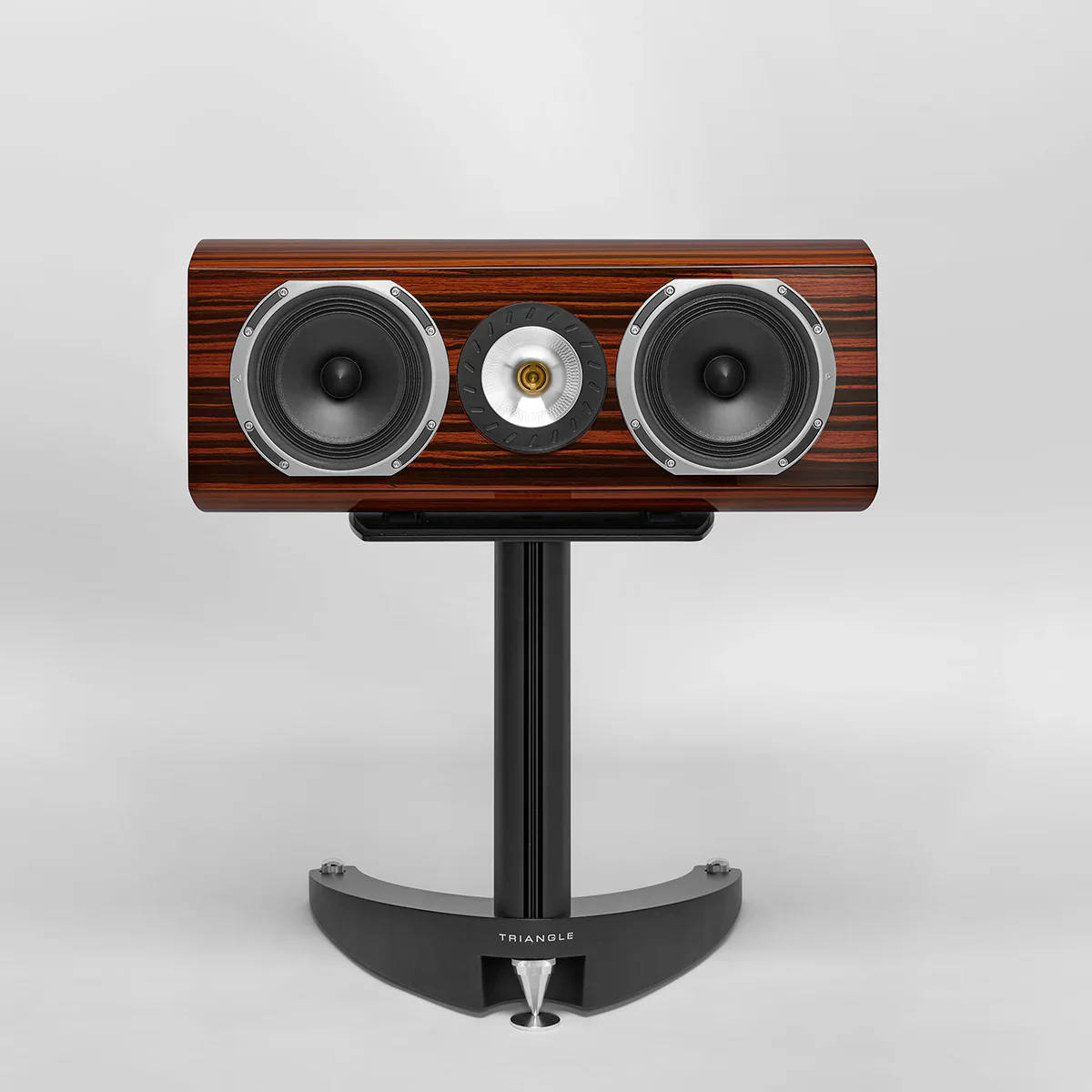

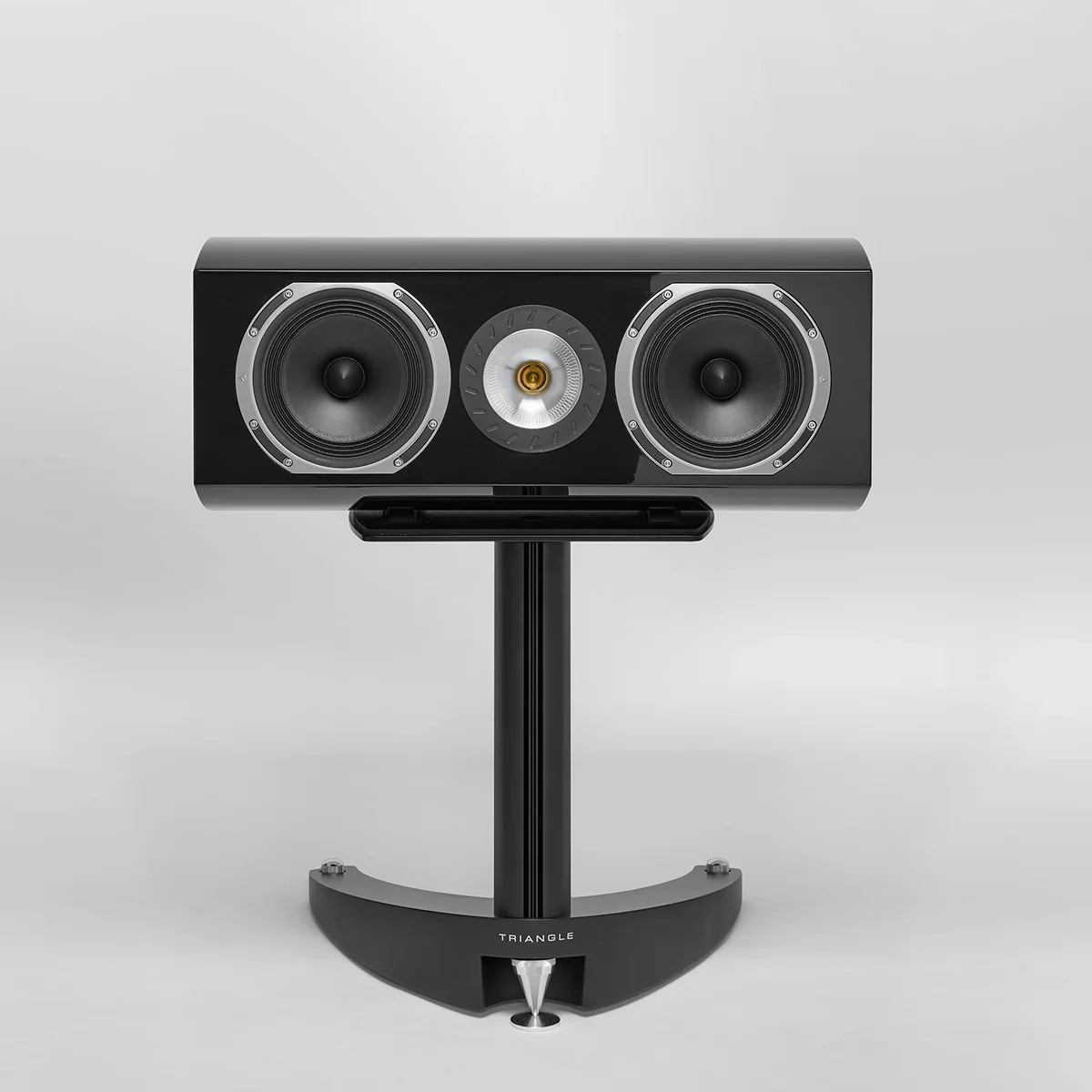

Triangle - Voce 40th Anniversary (Mangellan Series) - Centre Speaker
The ideal complement for an exceptional home theatre system, the MAGELLAN Voce 40th is a 2-way center channel designed to reproduce dialogues. Its sealed enclosure delivers warm and detailed vocals. The work conducted on its directivity minimised the placement issues usually encountered with this type of speaker.
The TZ2900 horn tweeter features a next generation dome in magnesium alloy that reveals the finest details of the soundtracks of your movies or series.
To achieve this level of accuracy and precision in the vocal register essential to TRIANGLE, the 2 drivers feature a paper diaphragm and small pleat suspensions emblematic of the brand. The curved shape of the cabinet is made of successive layers of high-density fiberboard, each 3mm thick. It offers excellent rigidity and excludes any internal parallels, thus avoiding any sound coloration.
The Magellan Voce 40th is TRIANGLE’s response for improving the performance of home theater and multichannel music systems. The S08C speaker stand designed specifically for this model is available as an option.
Features
- Home Cinema Speaker
- Magnesium Horn Tweeter
- 2x 16cm (6") Midwoofer
- Power Handling 100 W
- Double Terminal Block
S08-C speaker stand
The S08-C speaker stand is dedicated for this premium centre channel. Its upper part has been specially designed to accommodate the curved shapes of the Magellan Voce 40th. Positioned at the optimal height, the S08-C allows a perfect reproduction without interfering with the visibility of your television or projection screen.
Perfectly stable, the S08-C absorbs unwanted resonances to accurately reproduce the subtleties of the soundtrack and guarantee perfect intelligibility of dialogue.
Equipped with watertight tubes, you can add granular sand or tiny steel balls to ballast the stand and increase stability. (Triangle ballast balls sold separately)
TZ2900PM-MG tweeter with a magnesium alloy dome
A major innovation of this 40th anniversary edition, the TZ2900PM tweeter is equipped with a next generation dome in magnesium alloy providing a significant improvement in terms of linearity and consistency.
Its horn is shaped to limit directivity, i.e., off-axis drop in high frequency level. Together with the phase plug, this pairing allows the frequency response to be linearised.
We also added a counter-cap to the motor to reduce rear waves reflections, limit distortion and control the upper end of the sound spectrum. The TZ2900PM-MG tweeter provides an exceptionally smooth and fluid musical quality whilst ensuring accurate sound reproduction.
Midrange/bass driver with a paper diaphragm
With a cellulose pulp diaphragm and its “progressive” suspension, the midrange/bass driver has that rich, natural sound the brand is known for. Thanks to its suspension, there is no clear separation at the cone attachment, resulting in a seamless mid-range. The diaphragm houses an ultra-light anti-vortex polypropylene cone covered with a latex damping material to limit end of band irregularities.
Featuring a powerful motor and a perfectly matched voice coil, this driver is capable of reproducing firm and dynamic low frequencies while maintaining remarkable clarity and finesse in the vocal register.
CROSSOVERS & COMPONENTS
The Magellan 40th crossovers are assembled in our production facility and use only high-quality audio components selected after many hours of listening:
- French MKP capacitors developed in collaboration with SCR Audio.
- Ceramics resistors with low induction effect.
- Large section air core coils.
These new components provide this 40th anniversary edition a very high definition over the entire sound spectrum The particularity of the crossovers in the Magellan range lies in the use of very steep cut-off slopes (up to 24dB/Octave), correlated with the natural cut-off slopes of the loudspeaker’s transducers, thus guaranteeing excellent phase response.
The crossovers used reduce the risk of delays. The loudspeakers’ natural frequency responses were modified digitally for a perfect match with its crossover’s transfer function. Furthermore, the drivers’ impedances were linearised so they act as a pure resistance, reducing the amplifier’s workload.
HEAT DISSIPATION SYSTEM
All the drivers in the range have a high rigidity die-cast aluminium basket allowing maximum clearance of the radiating rear surface of the diaphragm.
This basket is in two parts, the rear part acting as a cooling cover. These drivers are equipped with a heat transmission ring to optimise the heat transfer towards the outer cover (LHS2 system).
This ring collects heat dissipated from the core and the yoke and brings it towards the outer cover. The power handling capacity for each speaker can thus exceed 200 W RMS. This system prevents the risk of overheating and ensures better speaker performance. As an example, a 20° change is measurable over 120 minutes, with a pink noise registered at 100 watts and filtered with high pass at 80Hz.
SOLID WOOD CABINET
The design of the enclosure is crucial to the sound quality, and the cabinets of the MAGELLAN 40th anniversary edition have been carefully designed to ensure full stability.
Made of successive layers of 3mm of HDF (High Density Fibreboard), the sides are moulded under tension for several weeks to obtain the desired shape without any compromise in terms of rigidity. The curved cabinet has been chosen for a reason: to limit the standing wave phenomenon by excluding any internal parallels.
The Magellan cabinets feature a specific architecture resulting from a thorough study of the vibrations and micro-deformations of the cabinetry. Measurements were made by laser accelerometers to highlight and model the deformation of the cabinets to place the reinforcements at the optimal places to ensure the best rigidity to the cabinet against the disturbances generated by the drivers. This process allowed to eliminate all the vibrations and to remove any sound coloration linked to the cabinet.
"WIDE-VENTING” CONCEPT
In a bass-reflex speaker, at high power levels, conventional tube vents tend to create airflow disturbances resulting in “breathing” noise.
To solve this problem, we designed internal and external bell-shaped adapters inspired by wind tunnel construction to ensure a constant laminar airflow. This controlled ventilation system reduces distortion, and the bass now has depth and power.
STAND AND SPEC SYSTEM
The SPEC system developed by TRIANGLE is the result of a research inspired by musical instruments such as the cello. This instrument has a resonance box vibrating at certain frequencies. To give it more support, the manufacturers have decided to connect it to the ground by a single point of connection, a part of the energy is thus directly led towards the ground.
TRIANGLE’s approach for the loudspeaker is the same. So, we decided to put three quarters of the speaker on a base. However, for the system to be highly efficient, it was necessary to insert an interface made of an inert polymer between the base and the cabinet. From then on, we could consider that the enclosure was almost completely isolated mechanically from the floor. We only had to capture a large part of the vibrations of the enclosure and its energy on the remaining front quarter and transfer it directly to the ground. This principle combined with the SPEC system eliminates any transmission to the ground.
TERMINAL
To enhance the crossover of this 40th Edition, TRIANGLE had to offer a connection plate that would live up to the work done.
The terminal is manufactured in a block of aluminium, reaching a thickness of 11mm. The terminals are made of pure copper then gold plated for a perfect electrical conduction. It allows for bi-wiring and bi-amplification. On the floorstander models, the crossover is done on separate boards for the bass and the medium/high. To do this, you just need to remove the jumpers.
Note that the terminals are designed to accommodate a bare audio cable, or a cable mounted with banana plugs or forks.
The serial number on the terminal highlights the exclusive character of this exceptional product.
Specifications
Amplifier & Power Handling
- Power Handling : 200W
* The power handling of a speaker is the average continuous power that the speaker can accept without damaging the drivers. You can use an amplifier more powerful than the permissible speaker power by limiting the volume to 70% of the maximum capacity. Conversely, an amplifier that is too underpowered will clip and create distortion, which can also damage the speakers if it is used beyond its capacity.
Speaker
- Type : Center speakers
- Crossover : 2 Ways
- Sensitivity (dB/W/m) : 91dB
- Bandwith (+/-3dB Hz) : 50Hz-22 000Hz
- Nominal impedance : 8Ω
- Minimum impedance : 3,6Ω
- 1 x Tweeter TZ2900PMMG : 1 inch Magnesium Dome tweeter with horn process
- 2 x Medium-Grave T16GMF72MS-MR1-V2 : 6,5 inch medium with natural paper cone and fabric surround
- Crossover Frequencies : 3000Hz
- Dimensions (W x H x D): 600mm x 250 mm x Depth : 340 mm
- Net weight : 18,5 kg
- Accessories: Speaker stands, 1 x Certificate of authenticity, 1 x Microfiber maintenance fabric, 1 x Pair of gloves for handling, 1 x Magnetic protection grille
* The impedance of a speaker can be simplified as an electrical resistance. The lower is the impedance of the speaker, the more current the amplifier will have to deliver.
- - Nominal impedance is measured at a frequency of 1kHz
- - Minimum impedance is measured at low frequencies.
TRIANGLE loudspeakers never fall below 3 Ohms, which means they can be used with almost all Hi-Fi and Home Cinema amplifiers.
Original: $4,234.74
-70%$4,234.74
$1,270.42
