Zavfino - Copper Head - Turntable

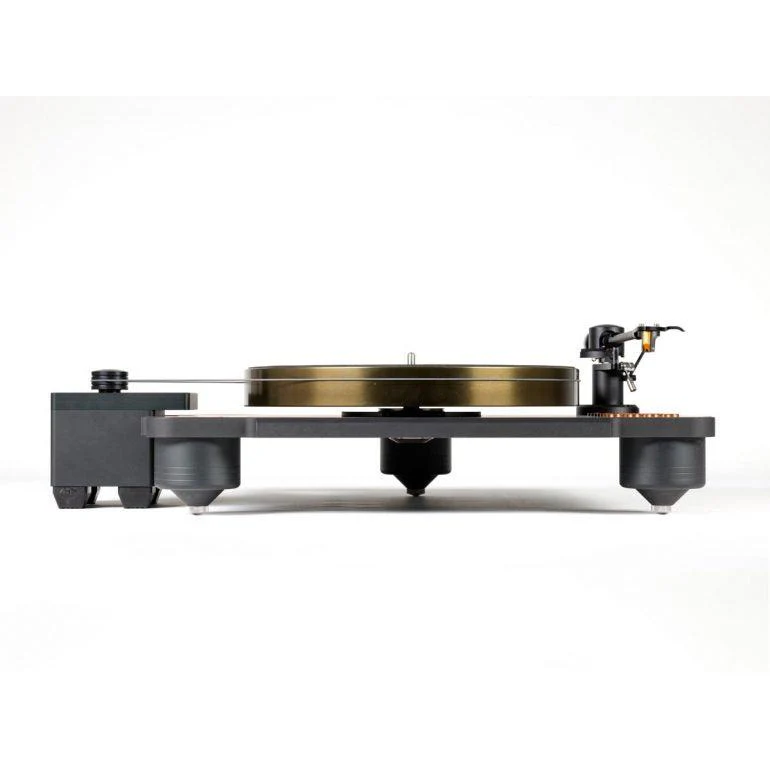

The Zavfino Copper Head Turntable has a solid 6061 aluminium plinth in satin black supported by three large POM feet to absorb vibration. In total, the plinth uses a mixture of Aluminium, POM, Acrylic, and pure Copper Slugs to effectively deaden it against vibration.

The platter is machined Aluminium billet that is Diamond Cut on the top side and contoured machined on the underside to dissipate vibration.

Motor housing is machined out of a solid block of aluminium and is completely independent of the Copper Head Plinth. It houses a 16V low torque motor that uses a universal power supply.

The Central Bearing is a two-piece solid stainless steel with a copper bushing, ceramic ball bearing, and a Teflon thrust plate. The bearing cap has silicone dampening rings between the bearing and aluminium platter. The table bearing sits in a 20mm acrylic anti-vibration disc isolating the bearing from the plinth further decreasing and standing wave vibration. The disc is locked into place with a combination of  PA-66 nylon and stainless steel screws effectively decoupling the bearing and platter from the plinth.

The Zavfino Copper Head has a fully independent motor supply in a 1.8kg  block aluminium housing regulated by an AC regenerating circuit, which allows for a perfect AC current that can be slightly adjusted for a perfect  33.3rpm and  45rpm operation. Also standard is the Zavfino Aeshna Aluminium arm with a second optional arm socket for other manufacturers’ arms up to  10.5 inches.

Specifications

Plinth

• Material: CNC machined 6061 solid aluminum
• Thickness: 16.20mm
• Dimensions: L480/W380/H60  (H-Rack to bottom of plinth)
• Finish: Fine sandblast / anodised satin black
• Resonance control 1: Acrylic disc sandwich (5.0mm)
• Foot: Solid 6061 aluminium with copper-plated adjustable spike
• Weight without platter: 14.8kgs

Platter

• 6061 machined aluminium with a contoured underside
• Thickness: 35mm machined/contoured
• Diameter: 298mm
• Bearing cap: Stainless steel, JIS standard-bronze insert
• Teflon thrust plate
• Bearing shaft: Stainless steel with oil reservoir cup
• Weight: 5.5kgs

Motor & Housing

• Material: CNC machined 6061 solid aluminium block
• Dimensions: L100/W90/H100 (mm)
• Finish: Fine sandblast / anodised satin black
• 16V/ low torque 50/60Hz with Delrin pulley
• Foot: Industrial grade rubber (non-marking)
• AC Power cable: Shielded/detachable
• Belt: Industrial grade silicone
• Weight: 2.0kgs

Speed Regulator

• 33.3rpm/45rpm
• Fine pitch control adjustment
• 100-240V, 50/60Hz Universal power supply
• Material: Aluminum 6061
• Finish: Fine sandblast- anodised satin black
• Dimensions: L180/D200/H65 (mm)
• Foot: Rubber non-marking
• Weight: 2.0kgs

This product has a: 2 Year Warranty
